Eye & Eye Leaf Springs

zoom img

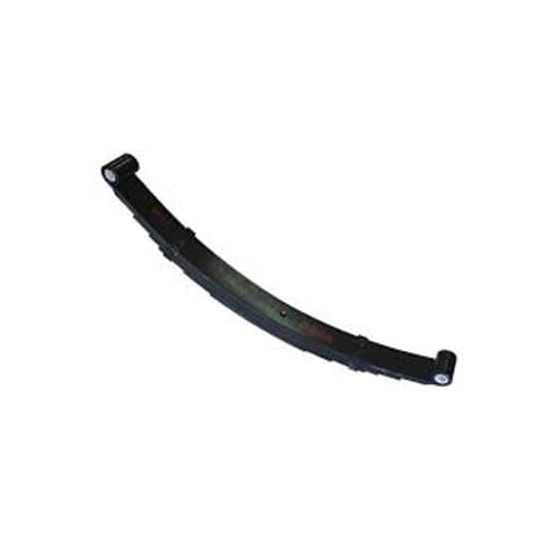

Eye & Eye Leaf Springs


Description Finish A B C D E F G Capacity for two springs
2 Leaf Eye to Eye Spring Black 711mm 120mm 355mm 735mm 830mm 825mm 960mm 700 kg
3 Leaf Eye to Eye Spring Black 711mm 120mm 355mm 735mm 830mm 825mm 960mm 850 kg
4 Leaf Eye to Eye Spring Black 711mm 120mm 355mm 735mm 830mm 825mm 960mm 1100 kg
5 Leaf Eye to Eye Spring Black 711mm 120mm 355mm 735mm 830mm 825mm 960mm 1300 kg
6 Leaf Eye to Eye Spring Black 711mm 120mm 355mm 735mm 830mm 825mm 960mm 1500 kg
8 Leaf Eye to Eye Spring Black 711mm 120mm 355mm 735mm 830mm 825mm 960mm 1900 kg

Eye & Eye style of spring is the “traditional” automotive leaf spring. Both ends of the spring are coiled into an eye into which a bush is placed. The front of the spring is captive in a spring “hanger” and the rear of the spring is allowed to swing on shackle bolts and shackle plates around a rear “hanger” or “dumb jack” and pin. This spring system gives smooth operation, with the parts which naturally wear over time, being able to be replaced.
